Description

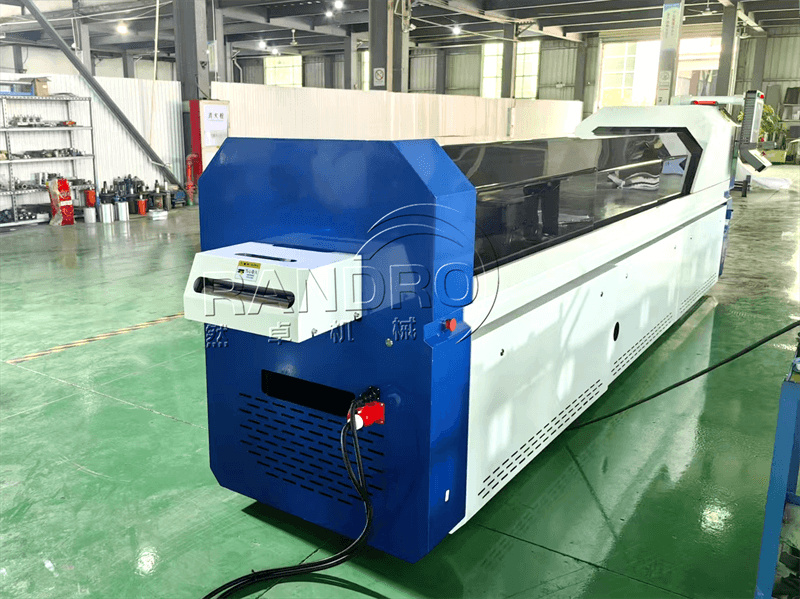

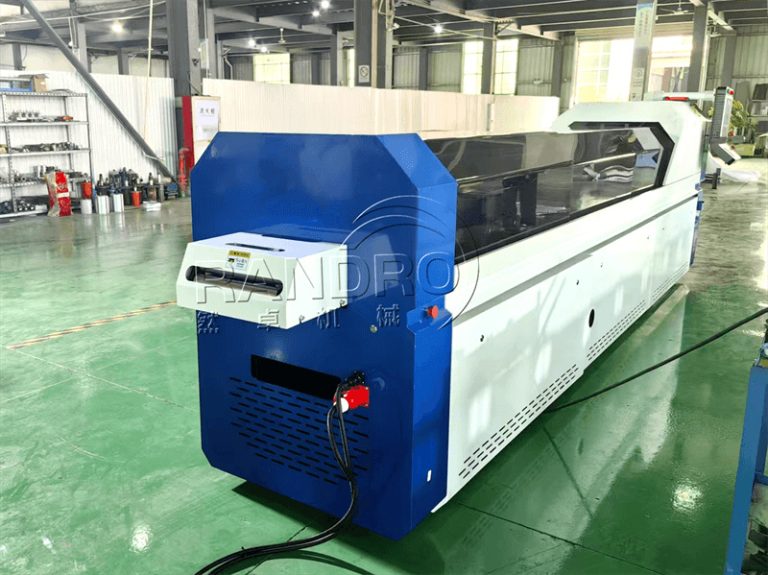

Automated light steel keel roll forming machine can make the basic structural skeletons with design software. Our light steel keel roll forming machine adopts cold steel structure system with small section size and light weight. Compared to the traditional buildings the foundation cost is reduced significantly. The wall bearing system makes the building full of light and dynamic, improves the flexibility of the interior layout, and low-carbon environmental protection. Light steel keel roll forming machine products is an efficient and energy-saving green building system.
Characters
Cost effective
Forming, hydraulic punching, printing
Sustainable and eco-friendly
Reinforced Design
Easy operation
Labor saving
Details
Workflow
Decoiler

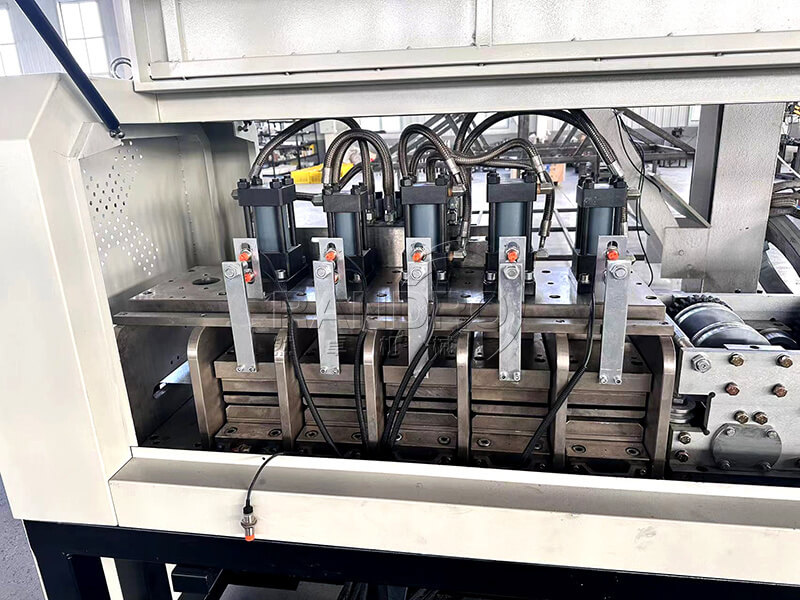

Punching
Forming

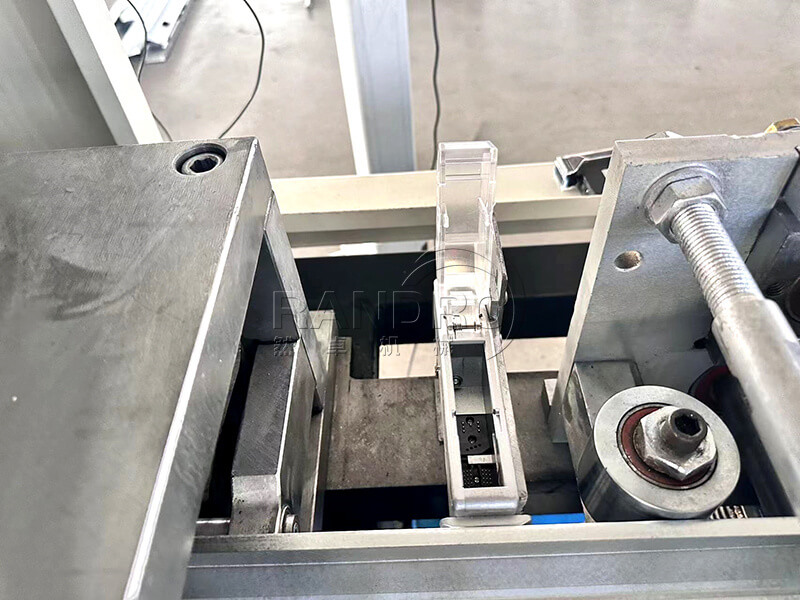

Inkjet
Cutting
Run out table
Main Parameters
| Profile | Web | Flange | Lip | Thickness | Yield strength | |
| C | 89mm | 41mm | 5-12mm | 0.75-1.2mm | 345Mpa | 550Mpa |
| C | 140mm | 41mm | 5-12mm | 0.75-1.2mm | 345Mpa | 550Mpa |
Profiled
Finished Product
Main Components

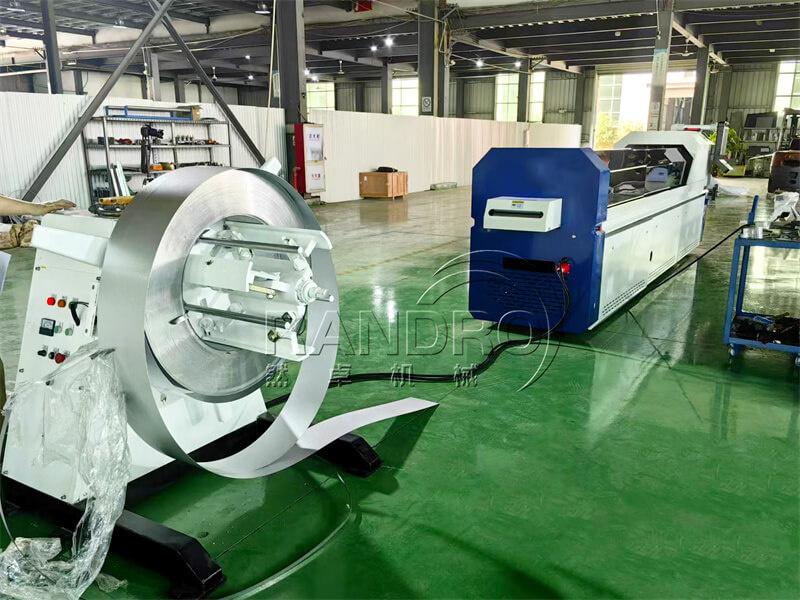

Decoiler

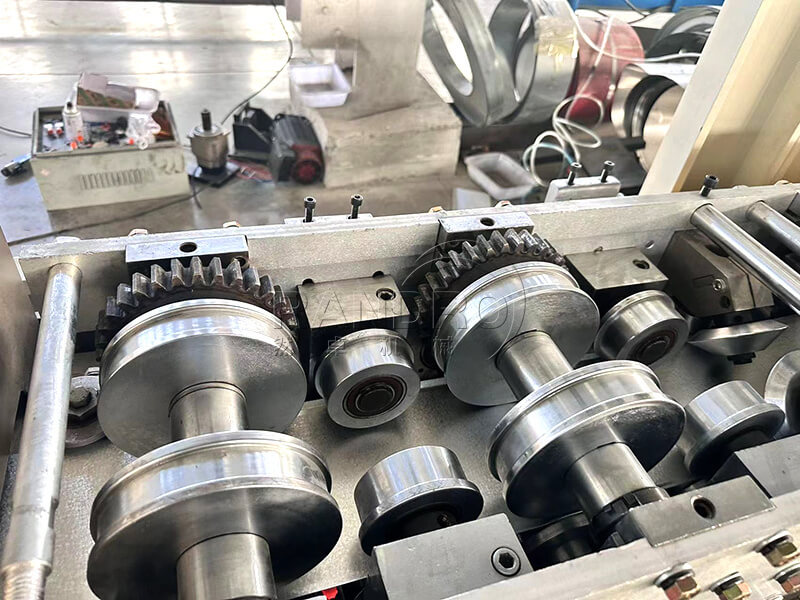

Roll Forming System

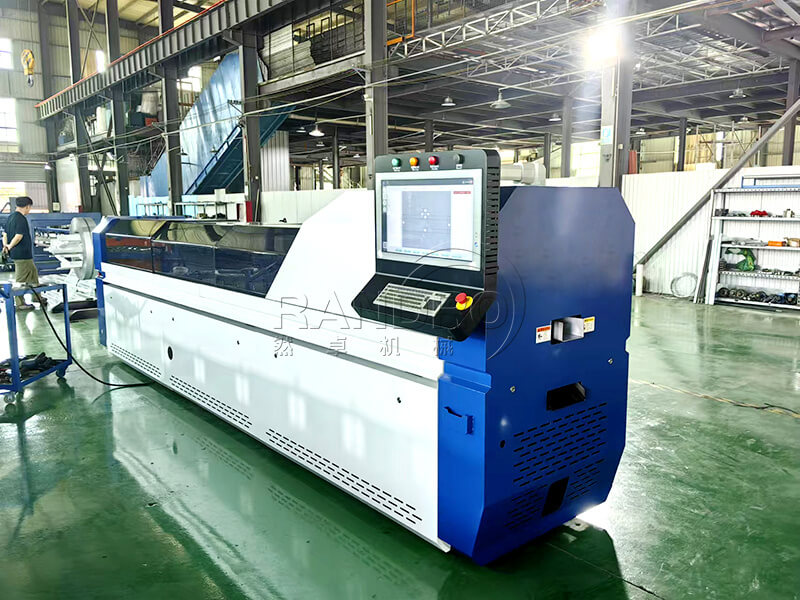

CNC Control System

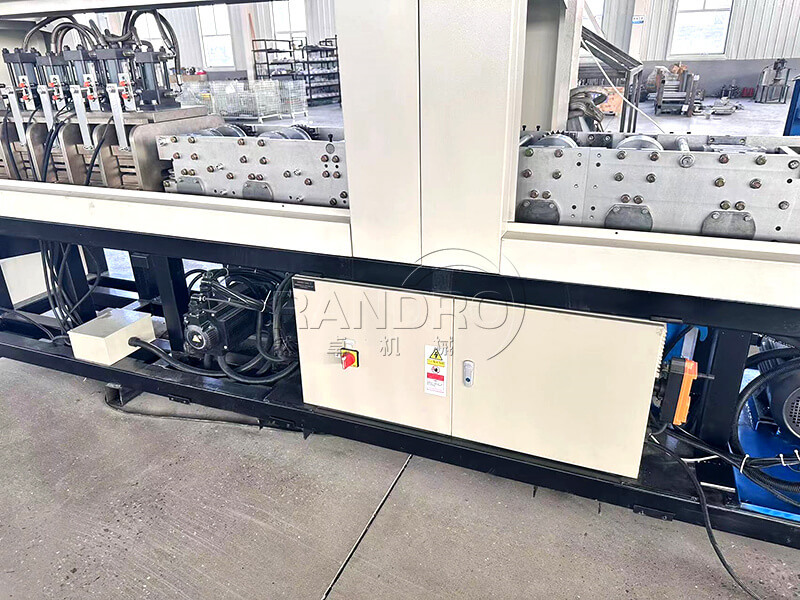

Transmission & Hydraulic System
Output Table

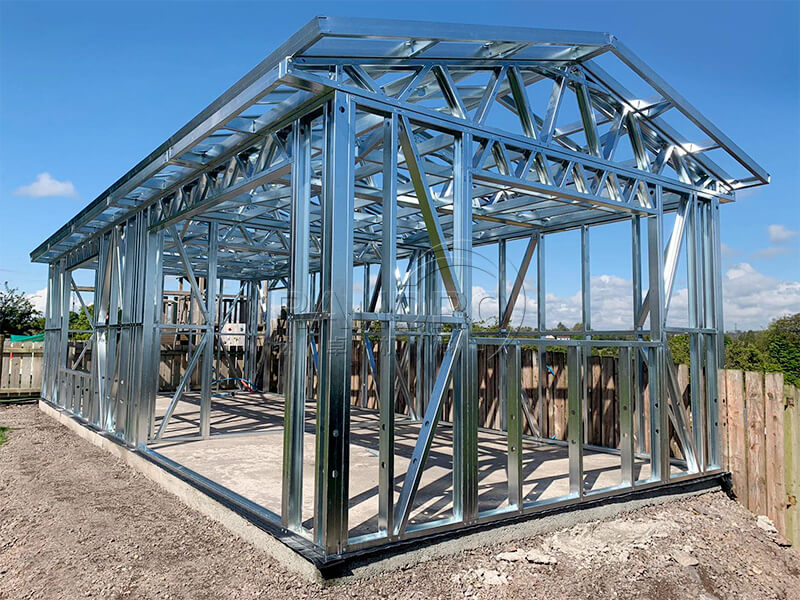

Application
